ALL SWITCHES (800A-4000A)

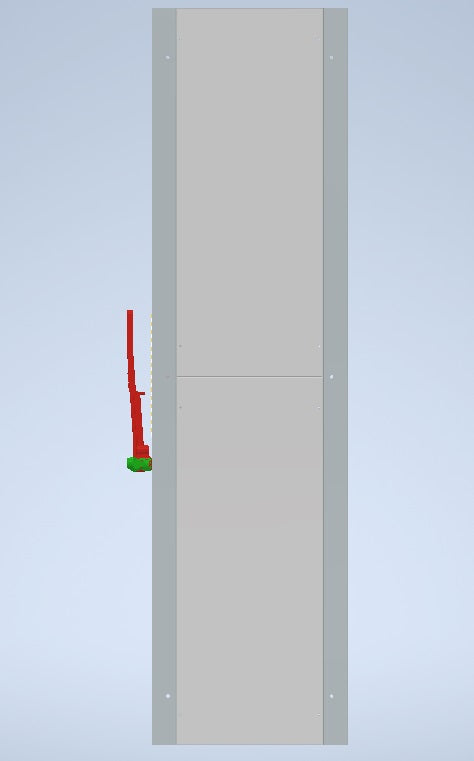

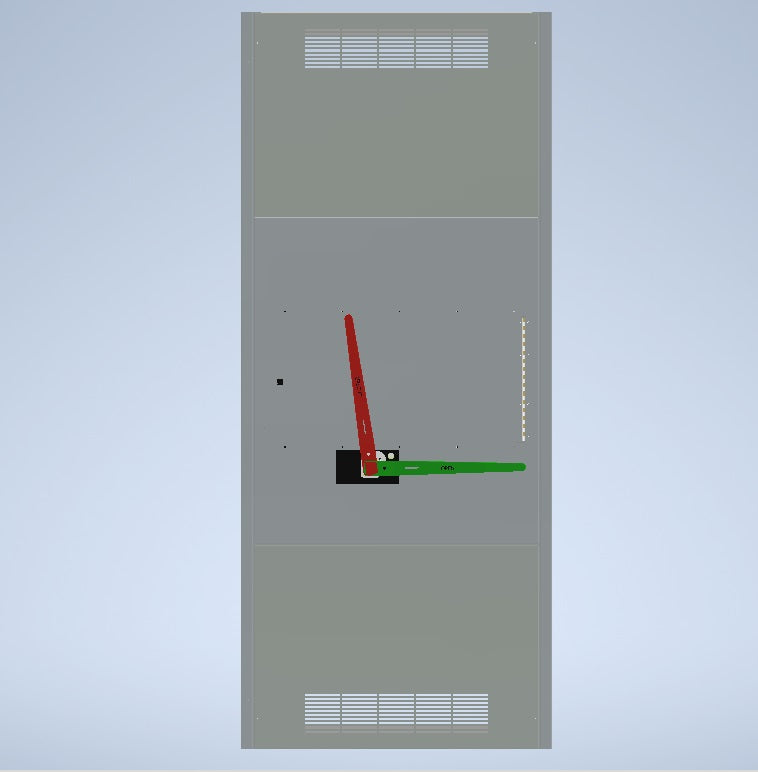

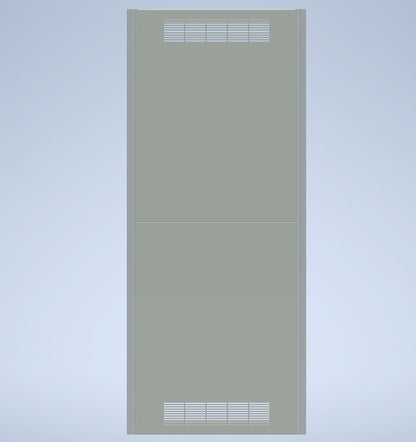

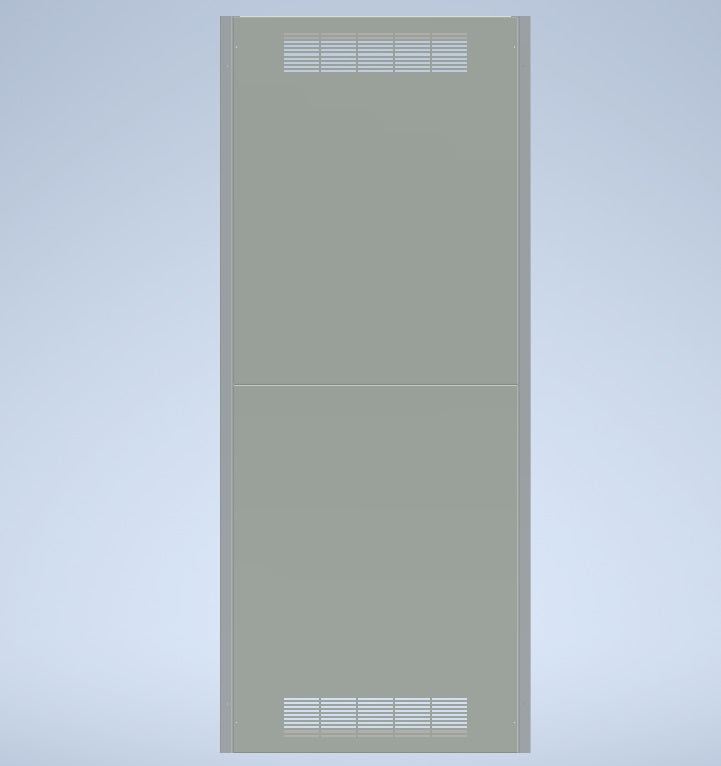

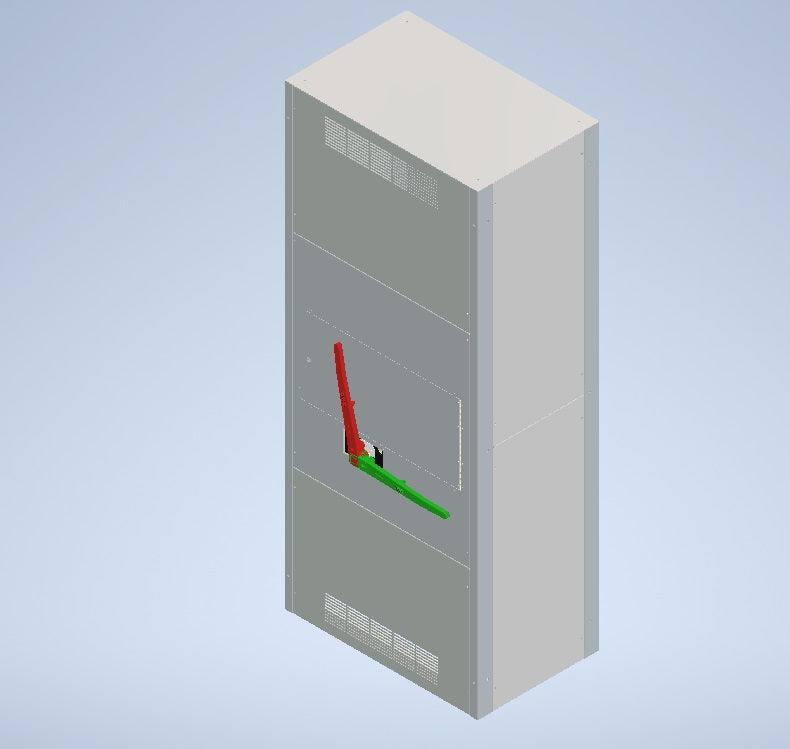

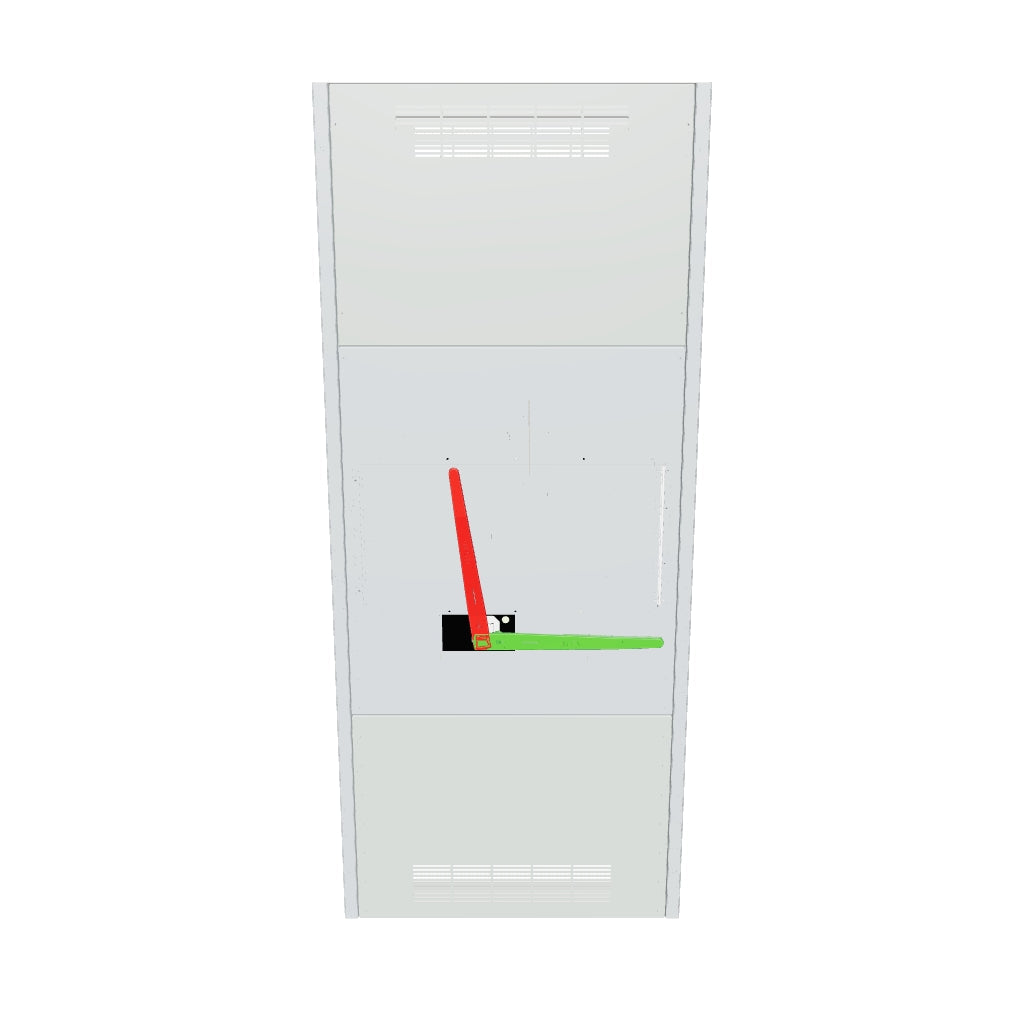

Standalone switches are built switchboard style, under UL891.
All switches have been tested in accordance with UL 977 and are UL listed as "Fused Power Circuit Devices" under File No. E44498. The C-UL mark certifies the product for use in Canada.
APPLICATION:
Particularly recommended for use in service entrance switchgear and/or where there may be high available fault currents. They are designed to accommodate Class L fuses.
FEATURES:
- 200,000 ampere fault current ratings
- Bolted pressure contacts
- Load-break design
- Quick-make, quick-break operators
- Visible contacts
- Silver-plated copper current-carrying parts
- Grid-type arc chutes
- Interpole barriers
- Terminals designed for lugs or bus bars
- Provisions for up to three padlocks
